High-Pressure Reinforced Thermoplastic Pipes (RTP) & Thermoplastic Composite Pipes (TCP)
Corrosion-free, continuous spoolable pipelines
Manufactured as per API 15S and DNV-ST-F119 under ISO 9001 and API Q1 compliant quality management systems. Pipe sizes 2" – 8", operating pressures 6 – 30 MPa (900 – 4,500 psi), delivered up to 2,000 m in a single continuous spool.
ISO/IEC 17025Accredited laboratory in accordance with ISO/IEC 17025
Multilayer, corrosion-resistant pipe. Up to 2,000 m without a joint.

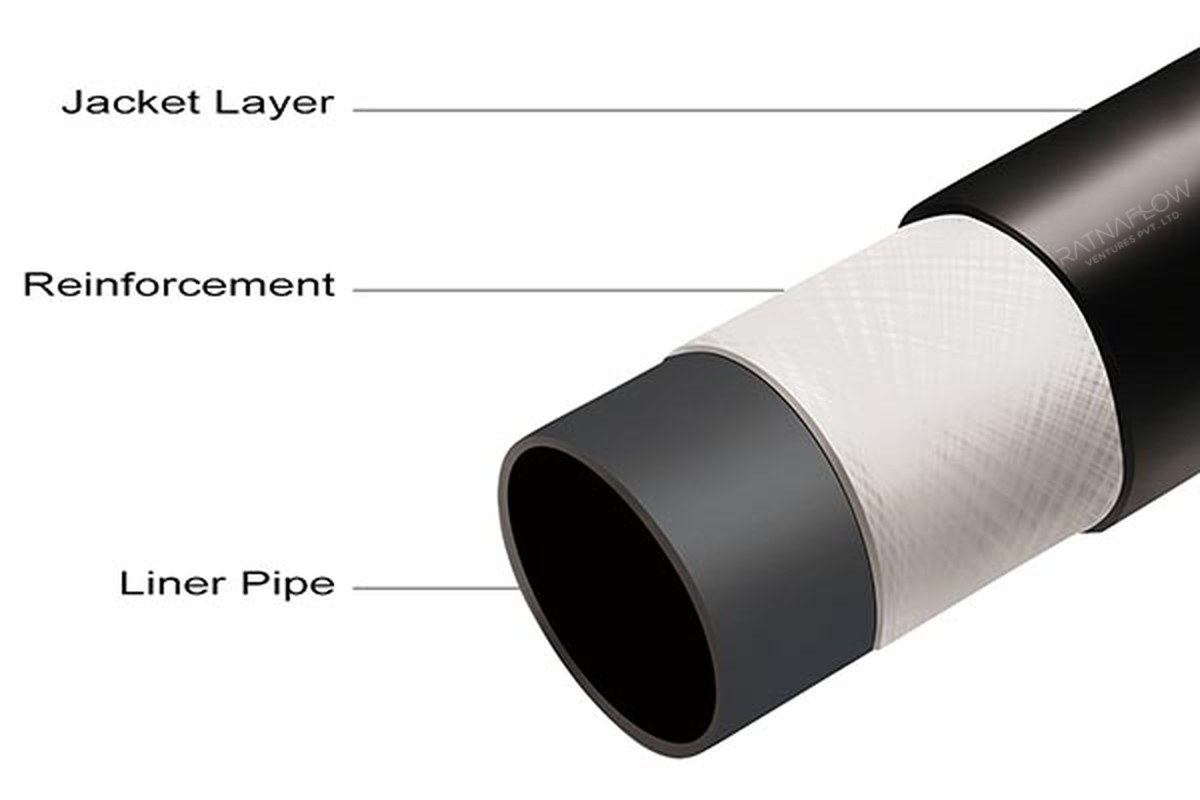

Ratnaflow RTP combines a thermoplastic liner, a contra-helically wound reinforcement of glass fibre, steel cord, aramid or carbon fibre tape, and a UV-stabilised outer jacket.
Because the pipe is flexible it is made in long continuous lengths and wound onto spools, so a line goes in with a fraction of the joints a steel line needs.
Built for oil, gas and water service
Steel-grade expertise, composite performance
Corrosion resistant
Multilayer thermoplastic construction. No coating or cathodic protection.
Less time to install
Up to 2,000 m per spool. No welding or X-ray in the field.
Lower lifecycle cost
Very little to maintain over a 25+ year design life.
Expert design team
Construction engineered for each line's fluid, pressure and temperature.
Accredited in-house lab
All testing in-house to API and DNV standards, in an ISO/IEC 17025 accredited lab.
Quick delivery
Made in Gujarat, with short lead times for Indian projects.
After-sales service
Responsive support on site, including repairs with field couplings.
Make in India
A domestic import substitute, made in India.
