Engineered layer by layer
Each Ratnaflow pipe is built on a continuous line: the liner is extruded, reinforcement tapes are wound contra-helically over it, and the jacket is extruded on top before the pipe is spooled.
Up to 2,000 m on one spool
Ratnaflow RTP / TCP leaves the line wound on reels. On site the reel sits on a payoff stand and the pipe is unrolled straight into the trench or along the right of way.
Explore the three layers
Hover or tap a layer to highlight it in the cross-section.
Multilayer system
| Construction | Raw material | Remarks |
|---|---|---|
| Inner tube (liner pipe) | PE100, PERT, PA11, PA12, PVDF | Material selected for each line based on working temperature, permeability and fluid compatibility. PVDF option for extreme sour service. |
| Tape wrapping (reinforcement) |
| Tape thickness: 0.3 – 2.0 mm Contra-helically wound to contain radial hoop bursting and axial tension loads. |
| Outer jacket | PE100, PERT, PA11, PA12, PVDF | Selected to suit the liner and the site conditions. UV-stabilised, high abrasion resistance. |
Sizes and pressure
Pipe sizes, drawn to scale
Nominal diameters 2", 3", 4", 5", 6", 7" and 8".
Operating pressure
6 – 30 MPa (900 – 4,500 psi), by size and reinforcement.
Capacity of the production line
| Item | Specification |
|---|---|
| Pipe diameter | 2 inch – 8 inch |
| Operating pressure | 6 – 30 MPa (900 – 4,500 psi) |
| Max. output per day | Up to 2.5 km |
| Max. output per year | 750 km |
| Reinforcement material | Steel cord / glass fibre / aramid fibre / carbon fibre tape |
| Max. continuous length | Up to 2,000 m per spool |
| Design life | 25+ years |
| Standards | API 15S · DNV-ST-F119 |
| Testing | In-house, ISO/IEC 17025 accredited lab |
Connecting RTP / TCP to the rest of the line

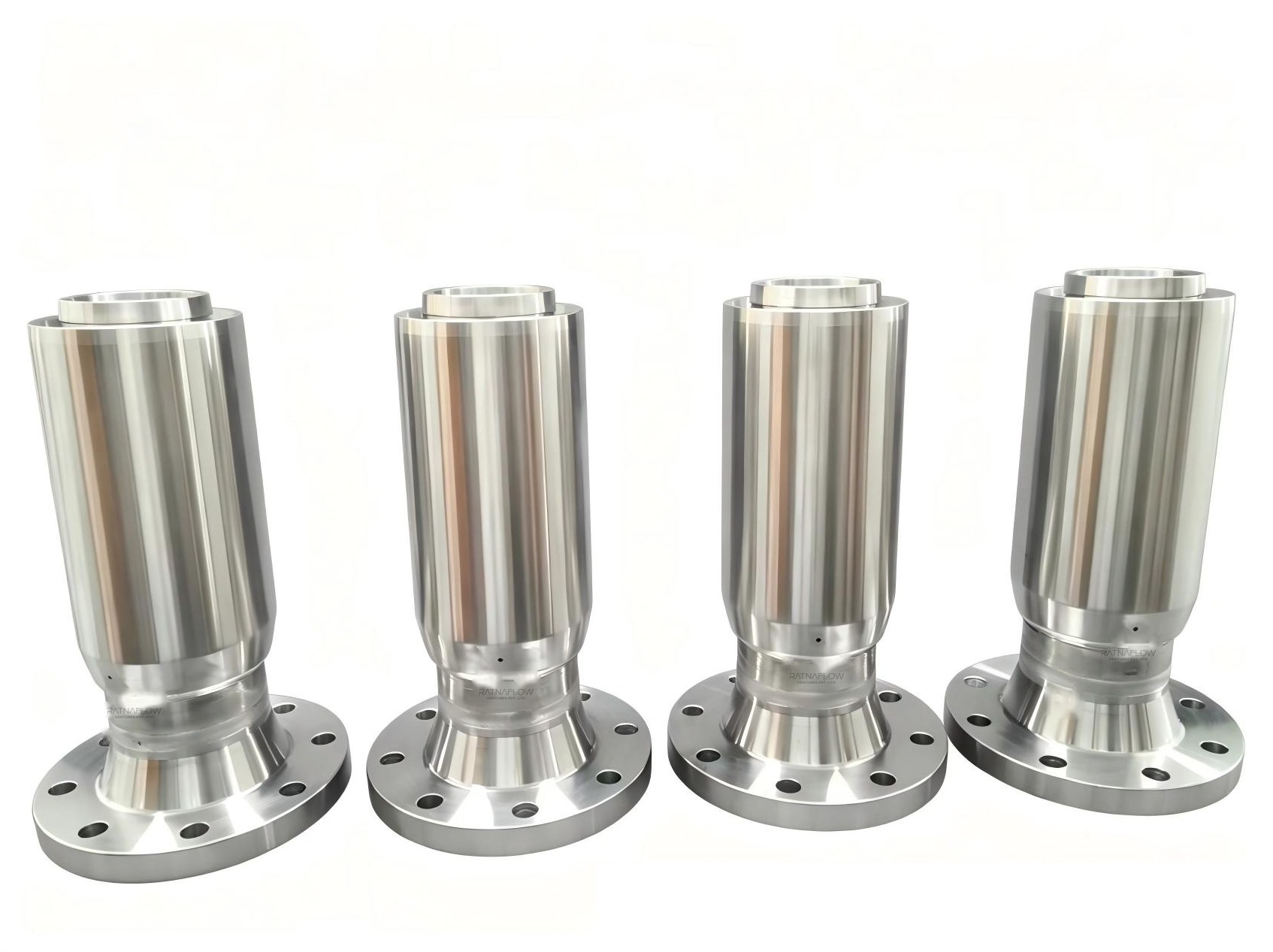

Flanged end fitting
A swaged body with a weld-neck flange (ASME B16.5 class to suit). Connects RTP / TCP to wellheads, manifolds, valves, pig launchers and steel pipework.

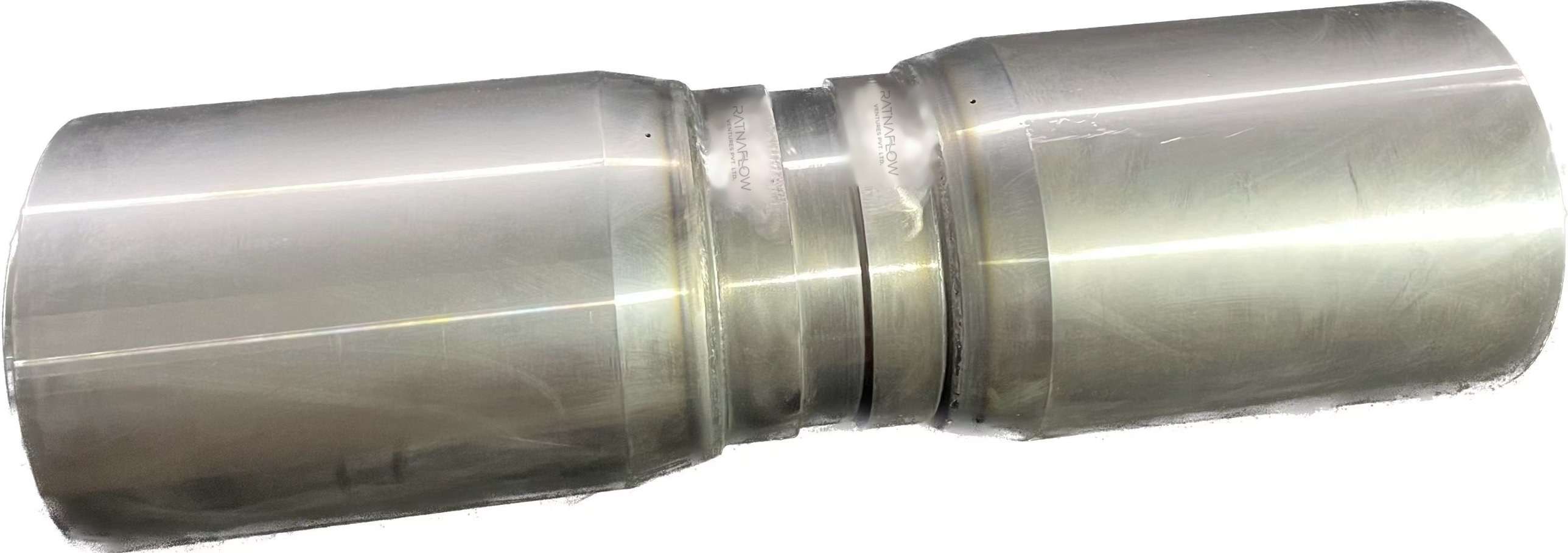

Pipe-to-pipe coupling
Joins two RTP / TCP lengths in the field: between spools on long lines, at road or river crossings, or to repair a damaged section.

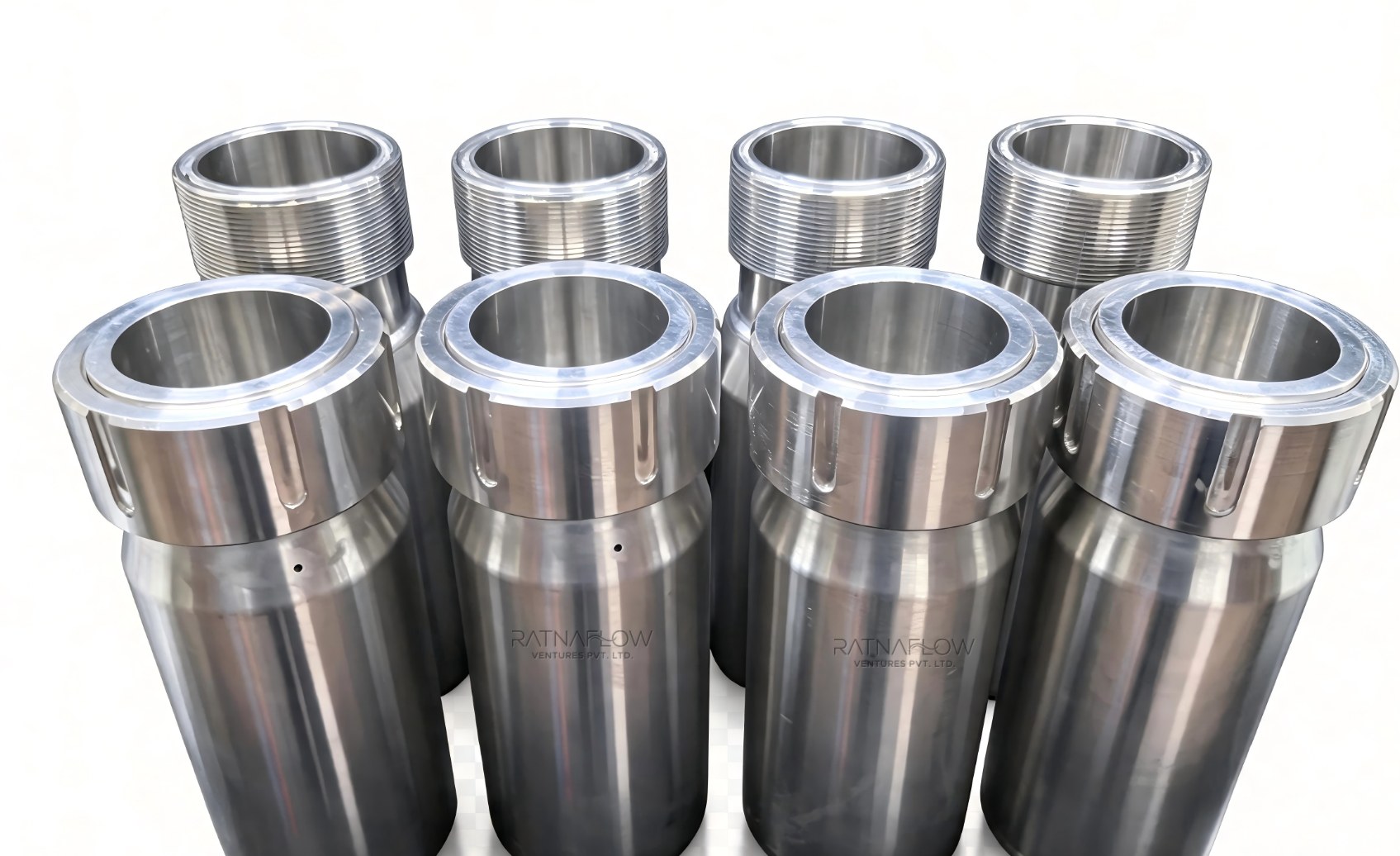

Threaded end fitting
A threaded union end for quick tie-ins to threaded valves, tees and wellhead connections, and for fast pipe-to-pipe unions.
Swaged connection, made on site
A steel insert supports the liner from inside while the outer sleeve is crimped over the jacket with a portable hydraulic swaging tool. Seal rings bear on the liner, so the fluid only ever touches thermoplastic and the SS or Inconel fitting.
| Fitting type | Connects to | Typical use | Body material |
|---|---|---|---|
| Flanged | Flanged equipment | Wellheads, manifolds, valves, launchers | SS and Inconel grades |
| Pipe-to-pipe coupling | Another RTP / TCP length | Spool-to-spool joints, crossings, repairs | SS and Inconel grades |
| Threaded | Threaded fittings | Quick tie-ins and unions | SS and Inconel grades |
Choose the tape for the service
Glass fibre tape
Impregnated glass fibre for corrosion-free reinforcement in oil, gas and water lines.
Steel cord tape
High-strength steel cord encapsulated in polymer for the upper pressure classes.
Aramid fibre tape
Lightweight, high-tensile aramid where weight and fatigue performance matter.
Carbon fibre tape
Very high strength and stiffness for the most demanding pressure and fatigue duties.
